Radial aluminum electrolytic capacitor with 680µF capacitance and 400V DC rated voltage. Features a 20% tolerance, 30mm diameter, 50mm height, and 10mm lead pitch for through-hole mounting. Operates from -25°C to 105°C with a 3000-hour life at rated conditions and a ripple current of 2.12A. RoHS compliant and supplied in bulk packaging.
PackageRadial
Voltage400V
Capacitance680uF
Voltage Rating400V
Quick Jump:
Technical Specifications
Panasonic EET-HD2G681KJ technical specifications.
General
| Capacitance | 680uF |
| Package/Case | Radial |
| Diameter | 30mm |
| Height | 50mm |
| Lead Diameter | 1.5mm |
| Lead Pitch | 10mm |
| Length | 50mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 2.12A |
| Ripple Current (AC) | 2.12A |
| RoHS Compliant | Yes |
| Series | HD |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 400V |
| Voltage Rating | 400V |
| DC Rated Voltage | 400V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EET-HD2G681KJ Datasheet
Download the complete datasheet for Panasonic EET-HD2G681KJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

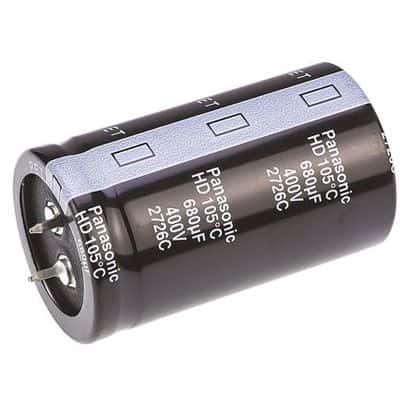

Product Images
