Aluminum electrolytic capacitor with 270µF capacitance and 420V DC rated voltage. Features a 30mm diameter radial package for through-hole mounting, a 10mm lead pitch, and 1.5mm lead diameter. Offers a ripple current of 1.2A and a rated lifetime of 3000 hours at 105°C. Operating temperature range is -25°C to 105°C with a 20% capacitance tolerance.
PackageRadial
Voltage420V
Capacitance270uF
Voltage Rating420V
Quick Jump:
Technical Specifications
Panasonic EET-HD2S271KJ technical specifications.
General
| Capacitance | 270uF |
| Package/Case | Radial |
| Diameter | 30mm |
| Height | 30mm |
| Height - Seated (Max) | 1.26inch |
| Lead Diameter | 1.5mm |
| Lead Pitch | 10mm |
| Length | 30mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.2A |
| RoHS Compliant | Yes |
| Series | HD |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 420V |
| Voltage Rating | 420V |
| DC Rated Voltage | 420V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EET-HD2S271KJ Datasheet
Download the complete datasheet for Panasonic EET-HD2S271KJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

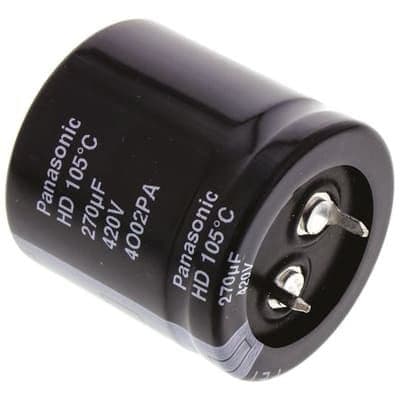

Product Images
