Snap-in aluminum electrolytic capacitor with 270µF capacitance and 420V DC rated voltage. Features a 105°C maximum operating temperature and 3000-hour life expectancy. Radial package with 35mm diameter, 25mm height, and 10mm lead pitch. Through-hole mounting with snap-in termination and 1.2A ripple current capability.
PackageRadial
Voltage420V
Capacitance270uF
Voltage Rating420V
Quick Jump:
Technical Specifications
Panasonic EET-HD2S271LJ technical specifications.
General
| Capacitance | 270uF |
| Package/Case | Radial |
| Diameter | 35mm |
| Height | 25mm |
| Height - Seated (Max) | 1.063inch |
| Lead Diameter | 1.5mm |
| Lead Pitch | 10mm |
| Length | 25mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.2A |
| Ripple Current (AC) | 1.2A |
| RoHS Compliant | Yes |
| Series | HD |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 420V |
| Voltage Rating | 420V |
| DC Rated Voltage | 420V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EET-HD2S271LJ Datasheet
Download the complete datasheet for Panasonic EET-HD2S271LJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

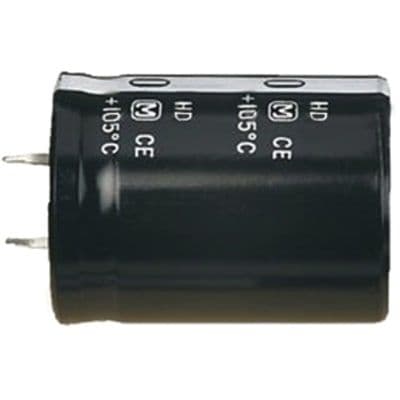

Product Images
