Aluminum electrolytic capacitor, radial package, 390µF capacitance, 420V voltage rating, and 20% tolerance. Features a 25mm diameter, 50mm height, 1.5mm lead diameter, and 10mm lead pitch. Rated for 3000 hours of life at 105°C, with a ripple current of 1.55A. RoHS compliant and designed for through-hole mounting.
PackageRadial
Voltage420V
Capacitance390uF
Voltage Rating420V
Quick Jump:
Technical Specifications
Panasonic EET-HD2S391JJ technical specifications.
General
| Capacitance | 390uF |
| Package/Case | Radial |
| Diameter | 25mm |
| Height | 50mm |
| Height - Seated (Max) | 2.047inch |
| Lead Diameter | 1.5mm |
| Lead Pitch | 10mm |
| Length | 50mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.55A |
| RoHS Compliant | Yes |
| Series | HD |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 420V |
| Voltage Rating | 420V |
| DC Rated Voltage | 420V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EET-HD2S391JJ Datasheet
Download the complete datasheet for Panasonic EET-HD2S391JJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

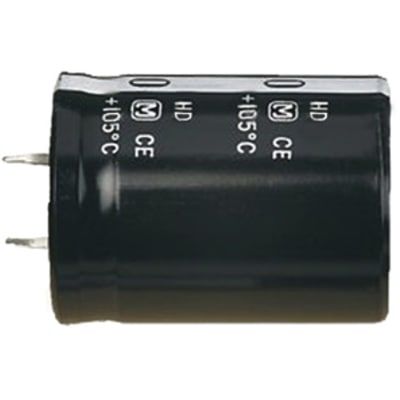

Product Images
