Aluminum electrolytic capacitor with 220µF capacitance and 450V DC rated voltage. Features a 20% tolerance, 105°C maximum operating temperature, and 3000-hour life expectancy. This general-purpose, radial-mount component offers a 1A ripple current and measures 25mm in diameter with a 10mm lead pitch. Supplied in bulk packaging.
PackageRadial
Voltage450V
Capacitance220uF
Voltage Rating450V
Quick Jump:
Technical Specifications
Panasonic EET-HD2W221JJ technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Diameter | 25mm |
| Features | General Purpose |
| Height | 35mm |
| Height - Seated (Max) | 1.457inch |
| Lead Diameter | 1.5mm |
| Lead Pitch | 10mm |
| Length | 35mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1A |
| Ripple Current (AC) | 1A |
| RoHS Compliant | Yes |
| Series | HD |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 450V |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EET-HD2W221JJ Datasheet
Download the complete datasheet for Panasonic EET-HD2W221JJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

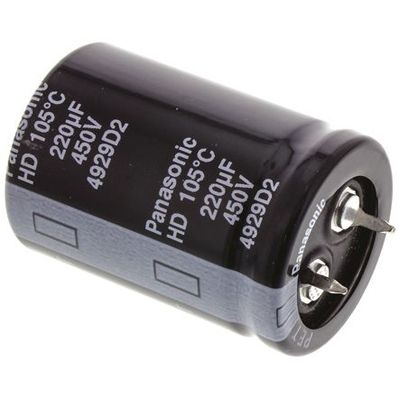

Product Images
