Radial aluminum electrolytic capacitor with 2.2mF capacitance and 160V DC rated voltage. Features 20% tolerance, 90mΩ ESR at 120Hz, and 4.78A ripple current capability. Designed for through-hole mounting with a 10mm lead pitch, measuring 30mm in diameter and 40mm in height. Operates within a -40°C to 85°C temperature range, offering 2000 hours of life at 85°C. Compliant with RoHS and REACH SVHC standards.
PackageRadial
Capacitance2.2mF
Voltage Rating160V
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic EET-UQ2C222DA technical specifications.
General
| Capacitance | 2.2mF |
| Package/Case | Radial |
| Diameter | 30mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 15% |
| ESR (Equivalent Series Resistance) | 90mR |
| Height | 40mm |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Length | 40mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| Ripple Current | 4.78A |
| RoHS Compliant | Yes |
| Series | TS-UQ |
| Termination | Snap in |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage Rating | 160V |
| DC Rated Voltage | 160V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EET-UQ2C222DA Datasheet
Download the complete datasheet for Panasonic EET-UQ2C222DA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

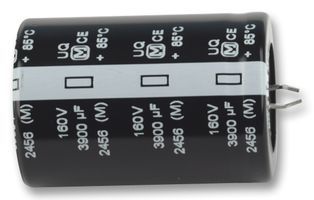

Product Images
