Aluminum electrolytic capacitor, 330µF capacitance, 400V DC rated voltage, 20% tolerance. Features 603mΩ ESR, 1.9A ripple current, and a 2000-hour life at 85°C. Radial package with 25mm diameter, 40mm height, and 10mm lead pitch, suitable for through-hole mounting. RoHS compliant.
PackageRadial
Capacitance330uF
Voltage Rating400V
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic EET-UQ2G331CA technical specifications.
General
| Capacitance | 330uF |
| Package/Case | Radial |
| Diameter | 25mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 15% |
| ESR (Equivalent Series Resistance) | 603mR |
| Height | 40mm |
| Lead Pitch | 10mm |
| Length | 40mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 1.9A |
| Ripple Current (AC) | 1.9A |
| RoHS Compliant | Yes |
| Series | TS-UQ |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage Rating | 400V |
| DC Rated Voltage | 400V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EET-UQ2G331CA Datasheet
Download the complete datasheet for Panasonic EET-UQ2G331CA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

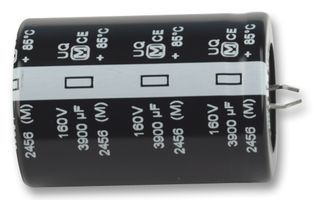

Product Images
