Radial aluminum electrolytic capacitor with 220µF capacitance and 450V DC rated voltage. Features a 10mm lead pitch, 25mm diameter, and 40mm height for through-hole mounting. Offers 20% capacitance tolerance, 904mΩ ESR at 120Hz, and a ripple current rating of 1.55A. Designed for operation between -25°C and 85°C with a 2000-hour life expectancy.
PackageRadial
Capacitance220uF
Resistance0.904R
Voltage Rating450V
Quick Jump:
Technical Specifications
Panasonic EET-UQ2W221CA technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Diameter | 25mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 15% |
| ESR (Equivalent Series Resistance) | 904mR |
| Height | 40mm |
| Lead Pitch | 10mm |
| Length | 40mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 0.904R |
| Ripple Current | 1.55A |
| Ripple Current (AC) | 1.55A |
| RoHS Compliant | Yes |
| Series | TS-UQ |
| Termination | Snap in |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EET-UQ2W221CA Datasheet
Download the complete datasheet for Panasonic EET-UQ2W221CA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

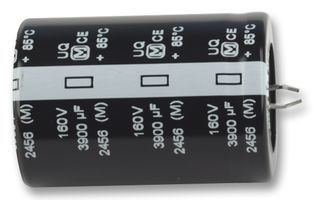

Product Images
