Aluminum electrolytic capacitor, 100µF capacitance, 10V DC rated voltage, and 20% tolerance. Features a radial package with a 5mm diameter, 15mm height, 2mm lead pitch, and 0.5mm lead diameter for through-hole PCB mounting. Offers a ripple current of 105mA, leakage current of 10µA, and a dissipation factor of 0.3%. Operates from -40°C to 105°C with a rated life of 7000 hours at 105°C. RoHS compliant and supplied in bulk packaging.
PackageRadial
Voltage10V
Capacitance100uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic EEU-EB1A101 technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 5mm |
| Dissipation Factor | 0.3% |
| Height | 15mm |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 2mm |
| Leakage Current | 10uA |
| Length | 15mm |
| Life (Hours) | 7000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 105mA |
| Ripple Current (AC) | 105mA |
| RoHS Compliant | Yes |
| Series | EB |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-EB1A101 Datasheet
Download the complete datasheet for Panasonic EEU-EB1A101 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

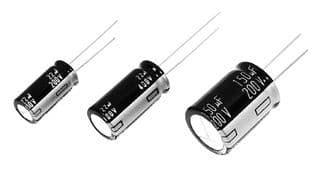

Product Images
