Aluminum electrolytic capacitor with 3.3µF capacitance and 50V DC rated voltage. Features 20% tolerance, 18mA ripple current, and a 5000-hour life at 105°C. Radial package measures 5mm in diameter and 11mm in height, with a 2mm lead pitch for through-hole PCB mounting. Operating temperature range is -40°C to 105°C.
PackageRadial
Voltage50V
Capacitance3.3uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic EEU-EB1H3R3S technical specifications.
General
| Capacitance | 3.3uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 5mm |
| Height | 11mm |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 2mm |
| Leakage Current | 3uA |
| Length | 11mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 18mA |
| Ripple Current (AC) | 18mA |
| RoHS Compliant | Yes |
| Series | EB |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-EB1H3R3S Datasheet
Download the complete datasheet for Panasonic EEU-EB1H3R3S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

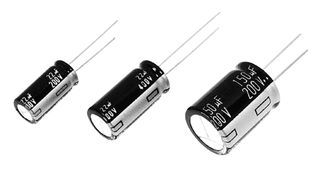

Product Images
