22µF radial aluminum electrolytic capacitor with 63V DC rated voltage and 20% tolerance. Features a 55mA ripple current, 13.8µA leakage current, and a dissipation factor of 0.12%. Operates from -40°C to 105°C with a 7000-hour life rating. Through-hole mounting with a 2.5mm lead pitch, 0.5mm lead diameter, 6.3mm diameter, and 15mm height. RoHS compliant.
PackageRadial
Voltage63V
Capacitance22uF
Voltage Rating63V
Quick Jump:
Technical Specifications
Panasonic EEU-EB1J220 technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 6.3mm |
| Dissipation Factor | 0.12% |
| Height | 15mm |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.5mm |
| Leakage Current | 13.8uA |
| Length | 15mm |
| Life (Hours) | 7000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 55mA |
| Ripple Current (AC) | 55mA |
| RoHS Compliant | Yes |
| Series | EB |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 63V |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-EB1J220 Datasheet
Download the complete datasheet for Panasonic EEU-EB1J220 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

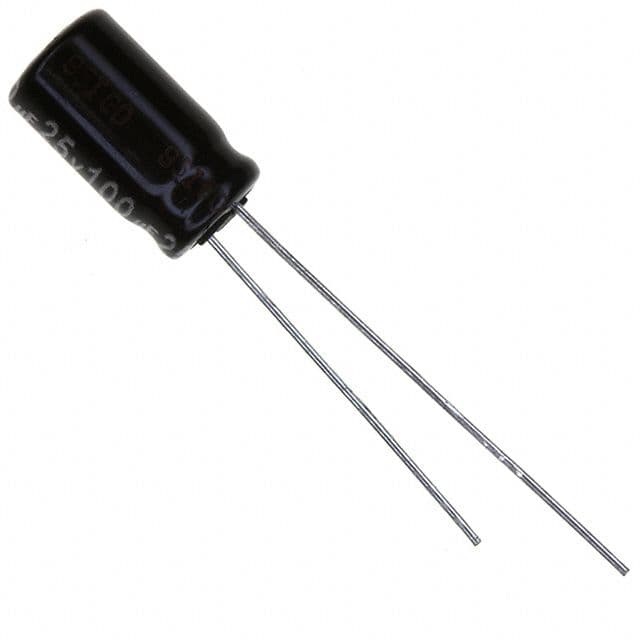

Product Images
