Radial aluminum electrolytic capacitor with 470uF capacitance and 20% tolerance. Features a 63V DC rated voltage, 105°C maximum operating temperature, and 10000-hour life. This through-hole component has a 5mm lead pitch, 0.6mm lead diameter, and a 12.5mm diameter by 25mm height. Dissipation factor is 0.12% with a leakage current of 296.1uA and ripple current of 454mA.
PackageRadial
Voltage63V
Capacitance470uF
Voltage Rating63V
Quick Jump:
Technical Specifications
Panasonic EEU-EB1J471 technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 12.5mm |
| Dissipation Factor | 0.12% |
| Height | 25mm |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 296.1uA |
| Length | 25mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 454mA |
| Ripple Current (AC) | 454mA |
| RoHS Compliant | Yes |
| Series | EB |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 63V |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-EB1J471 Datasheet
Download the complete datasheet for Panasonic EEU-EB1J471 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

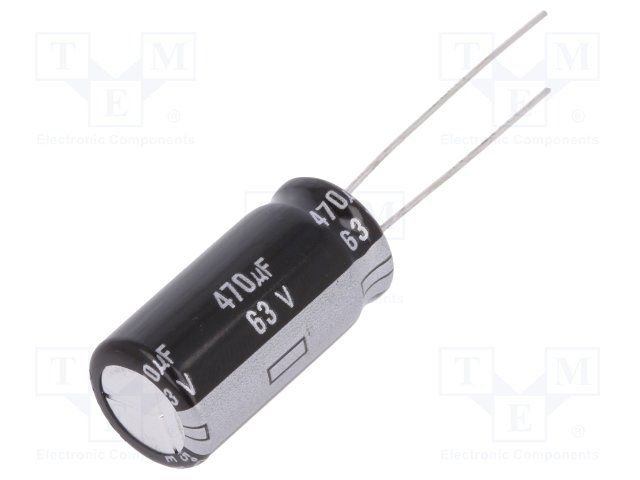

Product Images
