Aluminum electrolytic capacitor, 1000µF capacitance, 35V DC rated voltage, and 20% tolerance. Features a radial package with 5mm lead pitch, 0.6mm lead diameter, and straight lead style for through-hole PCB mounting. Operates within a -40°C to 105°C temperature range, offering 10,000 hours of life at rated conditions. Includes a ripple current capability of 586mA and a leakage current of 350µA.
PackageRadial
Voltage35V
Storage25mm
Capacitance1mF
Quick Jump:
Technical Specifications
Panasonic EEU-EB1V102 technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 12.5mm |
| Dissipation Factor | 0.18% |
| Height | 25mm |
| Height - Seated (Max) | 0.984inch |
| Lead Diameter | 0.6mm |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Leakage Current | 350uA |
| Length | 25mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 586mA |
| RoHS Compliant | Yes |
| Series | EB |
| Size | 25mm |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-EB1V102 Datasheet
Download the complete datasheet for Panasonic EEU-EB1V102 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

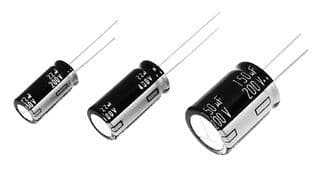

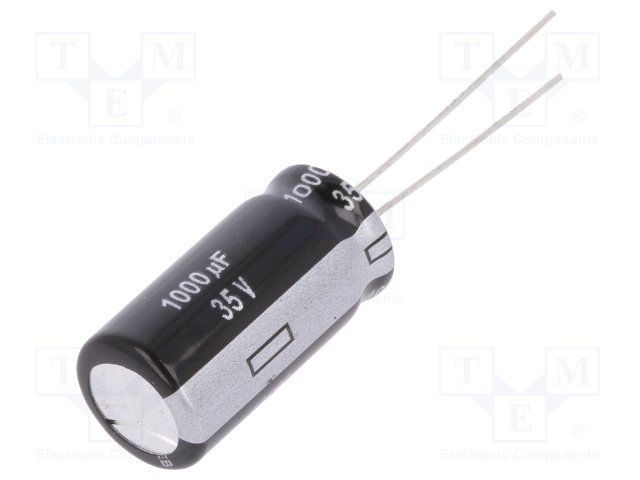

Product Images
