General purpose aluminum electrolytic capacitor with 33µF capacitance and 200V DC rated voltage. Features a 20% tolerance, 600mA ripple current capability, and a 5000-hour life at 105°C. Radial package with 5mm lead pitch, 0.6mm lead diameter, and dimensions of 12.5mm diameter by 20mm height. Through-hole mounting for PCB applications, with a low leakage current of 3µA and a dissipation factor of 0.15%.
PackageRadial
Voltage200V
Capacitance33uF
Voltage Rating200V
Quick Jump:
Technical Specifications
Panasonic EEU-EB2D330 technical specifications.
General
| Capacitance | 33uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 12.5mm |
| Dissipation Factor | 0.15% |
| Height | 20mm |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 3uA |
| Length | 20mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 600mA |
| RoHS Compliant | Yes |
| Series | EB |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 200V |
| Voltage Rating | 200V |
| DC Rated Voltage | 200V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-EB2D330 Datasheet
Download the complete datasheet for Panasonic EEU-EB2D330 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

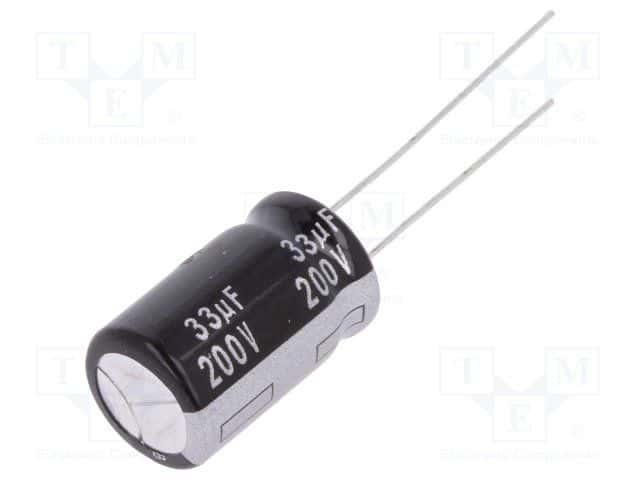

Product Images
