Aluminum electrolytic capacitor with 47µF capacitance and 450V voltage rating. Features a radial package with 7.5mm lead pitch and 0.8mm lead diameter, designed for through-hole PCB mounting. Offers a 5000-hour life at 105°C, 850mA ripple current, and 3µA leakage current. Dissipation factor is 0.24% with a ±20% tolerance.
PackageRadial
Voltage450V
Capacitance47uF
Voltage Rating450V
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Panasonic EEU-EB2W470 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Panasonic EEU-EB2W470 technical specifications.
General
| Capacitance | 47uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 18mm |
| Dissipation Factor | 0.24% |
| Height | 31.5mm |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Lead/Base Style | Straight |
| Leakage Current | 3uA |
| Length | 31.5mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 50 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 850mA |
| RoHS Compliant | Yes |
| Series | EB |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 450V |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-EB2W470 Datasheet
Download the complete datasheet for Panasonic EEU-EB2W470 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

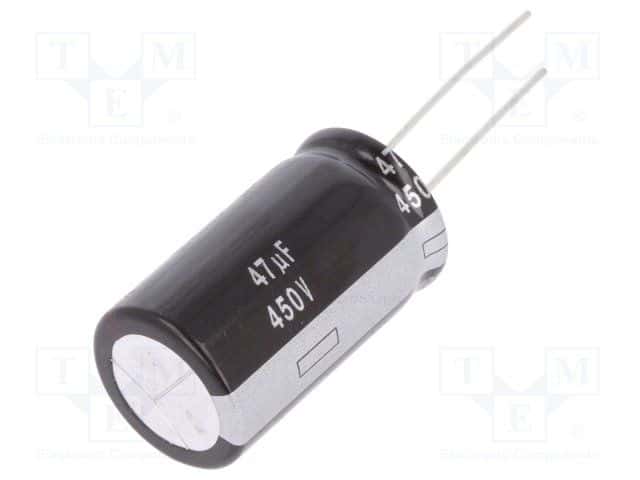

Product Images
