Aluminum electrolytic capacitor, 100µF capacitance, 160V DC rated voltage, 20% tolerance. Features a 1.28A ripple current capability, 10000-hour life at 105°C maximum operating temperature, and a dissipation factor of 0.15%. Radial package with 7.5mm lead pitch, 0.8mm lead diameter, and dimensions of 16mm diameter by 20mm height. Through-hole mounting for PCB applications, supplied in bulk packaging.
PackageRadial
Voltage160V
Capacitance100uF
Voltage Rating160V
Quick Jump:
Technical Specifications
Panasonic EEU-ED2C101S technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 16mm |
| Dissipation Factor | 0.15% |
| Height | 20mm |
| Height - Seated (Max) | 0.787inch |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Length | 20mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.28A |
| RoHS Compliant | Yes |
| Series | ED |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 160V |
| Voltage Rating | 160V |
| DC Rated Voltage | 160V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-ED2C101S Datasheet
Download the complete datasheet for Panasonic EEU-ED2C101S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

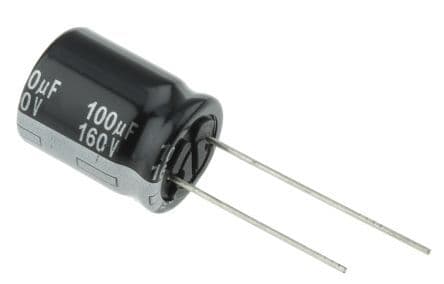

Product Images
