150µF radial aluminum electrolytic capacitor with a 160V DC rated voltage. Features a 105°C maximum operating temperature, 10000-hour life, and 1.4A ripple current. This through-hole component has a 7.5mm lead pitch, 0.8mm lead diameter, and a 20% capacitance tolerance. The capacitor measures 18mm in diameter and 20mm in height, with a dissipation factor of 0.15%. RoHS compliant and lead-free.
PackageRadial
Voltage160V
Capacitance150uF
Voltage Rating160V
Quick Jump:
Technical Specifications
Panasonic EEU-ED2C151S technical specifications.
General
| Capacitance | 150uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 18mm |
| Dissipation Factor | 0.15% |
| Height | 20mm |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Length | 20mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 1.4A |
| RoHS Compliant | Yes |
| Series | ED |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 160V |
| Voltage Rating | 160V |
| DC Rated Voltage | 160V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-ED2C151S Datasheet
Download the complete datasheet for Panasonic EEU-ED2C151S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

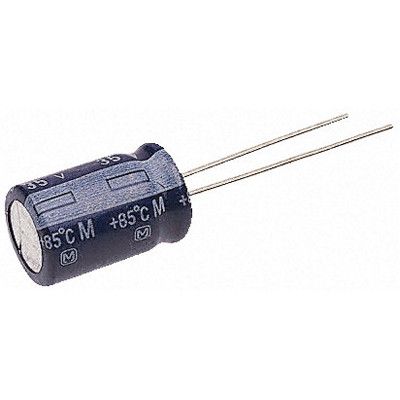

Product Images
