330uF radial aluminum electrolytic capacitor with 20% tolerance and 200V voltage rating. Features a 200V AC rating, 200V DC rated voltage, and a maximum operating temperature of 105°C. This through-hole component offers a 2.4A ripple current, 3.97mA leakage current, and a 10000-hour life at rated temperature. With a 7.5mm lead pitch and 0.8mm lead diameter, it is RoHS compliant and lead-free.
PackageRadial
Voltage200V
Capacitance330uF
Voltage Rating200V
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Panasonic EEU-ED2D331 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Panasonic EEU-ED2D331 technical specifications.
General
| Capacitance | 330uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 18mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.15% |
| Height | 40mm |
| Height - Seated (Max) | 1.575inch |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Leakage Current | 3.97mA |
| Length | 40mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 50 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 2.4A |
| RoHS Compliant | Yes |
| Series | ED |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 200V |
| Voltage Rating | 200V |
| Voltage Rating (AC) | 200V |
| DC Rated Voltage | 200V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-ED2D331 Datasheet
Download the complete datasheet for Panasonic EEU-ED2D331 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

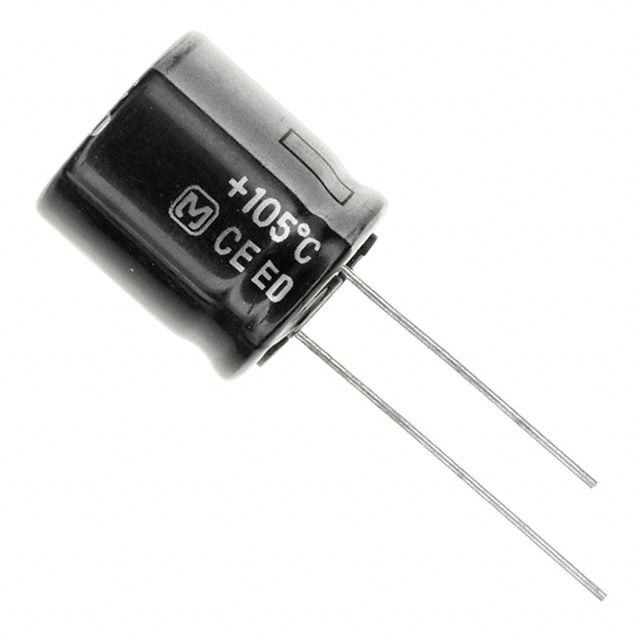

Product Images
