Radial aluminum electrolytic capacitor with 22µF capacitance and 20% tolerance. Features a 400V DC rated voltage and a maximum operating temperature of 105°C. Dissipation factor is 0.24% with a leakage current of 538µA. Ripple current is 500mA, and the component offers 10000 hours of life at rated conditions. Designed for through-hole PCB mounting with a 5mm lead pitch.
PackageRadial
Voltage400V
Capacitance22uF
Voltage Rating400V
Quick Jump:
Technical Specifications
Panasonic EEU-ED2G220 technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 12.5mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.24% |
| Height | 25mm |
| Height - Seated (Max) | 0.984inch |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 538uA |
| Length | 25mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 500mA |
| Ripple Current (AC) | 500mA |
| RoHS Compliant | Yes |
| Series | ED |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 400V |
| Voltage Rating | 400V |
| Voltage Rating (AC) | 400V |
| DC Rated Voltage | 400V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-ED2G220 Datasheet
Download the complete datasheet for Panasonic EEU-ED2G220 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

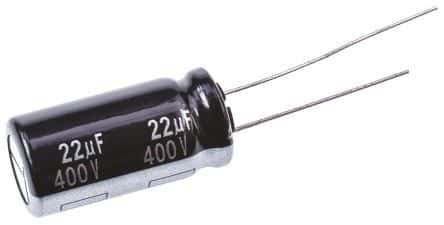

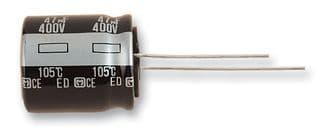

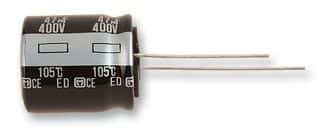

Product Images
