Aluminum electrolytic capacitor with 150µF capacitance and 160V DC rated voltage. Features a 20% tolerance, 1.89A ripple current, and 1.45mA leakage current. Designed for through-hole PCB mounting with a radial package measuring 16mm diameter and 25mm height. Operates from -25°C to 105°C with a 10,000-hour lifespan.
PackageRadial
Voltage160V
Capacitance150uF
Voltage Rating160V
Quick Jump:
Technical Specifications
Panasonic EEU-EE2C151 technical specifications.
General
| Capacitance | 150uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 16mm |
| Dissipation Factor | 0.15% |
| Height | 25mm |
| Height - Seated (Max) | 0.984inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 7.5mm |
| Leakage Current | 1.45mA |
| Length | 25mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.89A |
| RoHS Compliant | Yes |
| Series | EE |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 160V |
| Voltage Rating | 160V |
| DC Rated Voltage | 160V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-EE2C151 Datasheet
Download the complete datasheet for Panasonic EEU-EE2C151 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

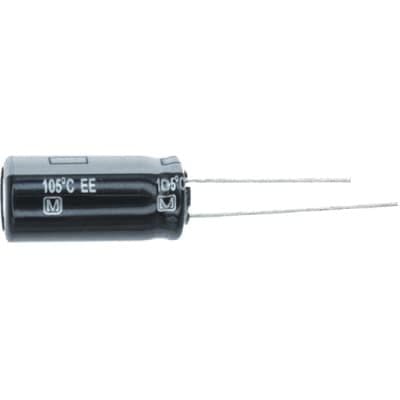

Product Images
