220µF, 160V radial aluminum electrolytic capacitor with 20% tolerance. Features a 10000-hour life at 105°C, 1.95A ripple current, and 2.122mA leakage current. This general-purpose component has a 7.5mm lead pitch, 0.8mm lead diameter, and 18mm diameter. Designed for through-hole PCB mounting, it operates from -25°C to 105°C and is RoHS compliant.
PackageRadial
Voltage160V
Capacitance220uF
Voltage Rating160V
Quick Jump:
Technical Specifications
Panasonic EEU-EE2C221S technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 18mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.15% |
| Features | General Purpose |
| Height | 25mm |
| Height - Seated (Max) | 0.984inch |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Leakage Current | 2.122mA |
| Length | 25mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.95A |
| RoHS Compliant | Yes |
| Series | EE |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 160V |
| Voltage Rating | 160V |
| DC Rated Voltage | 160V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-EE2C221S Datasheet
Download the complete datasheet for Panasonic EEU-EE2C221S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

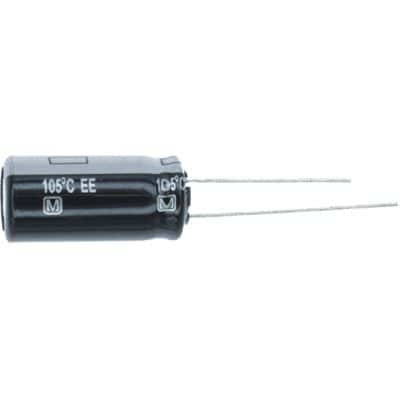

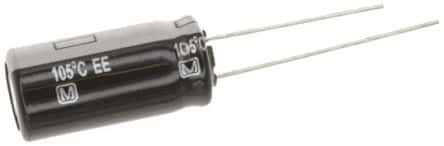

Product Images
