22µF, 200V radial aluminum electrolytic capacitor with 20% tolerance. Features 8000-hour life at 105°C, 850mA ripple current, and 274µA leakage current. Through-hole mounting with 5mm lead pitch and 0.6mm lead diameter. RoHS compliant.
PackageRadial
Voltage200V
Capacitance22uF
Voltage Rating200V
Quick Jump:
Technical Specifications
Panasonic EEU-EE2D220 technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Dissipation Factor | 0.15% |
| Height | 20mm |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 274uA |
| Length | 20mm |
| Life (Hours) | 8000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 850mA |
| Ripple Current (AC) | 850mA |
| RoHS Compliant | Yes |
| Series | EE |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 200V |
| Voltage Rating | 200V |
| DC Rated Voltage | 200V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-EE2D220 Datasheet
Download the complete datasheet for Panasonic EEU-EE2D220 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

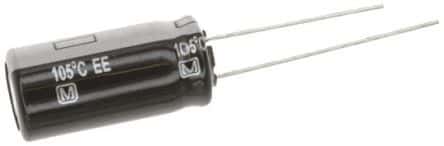

Product Images
