Aluminum electrolytic capacitor with 220µF capacitance and 20% tolerance. Features a 200V DC rated voltage, 2.6A ripple current, and 2.65mA leakage current. Radial package with 7.5mm lead pitch, 0.8mm lead diameter, and 18mm diameter. Operates from -25°C to 105°C with a 10000-hour life expectancy. Through-hole mounting for PCB applications.
PackageRadial
Voltage200V
Capacitance220uF
Voltage Rating200V
Quick Jump:
Technical Specifications
Panasonic EEU-EE2D221 technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 18mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.15% |
| Height | 31.5mm |
| Height - Seated (Max) | 1.319inch |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Leakage Current | 2.65mA |
| Length | 31.5mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 50 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 2.6A |
| RoHS Compliant | Yes |
| Series | EE |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 200V |
| Voltage Rating | 200V |
| DC Rated Voltage | 200V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-EE2D221 Datasheet
Download the complete datasheet for Panasonic EEU-EE2D221 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

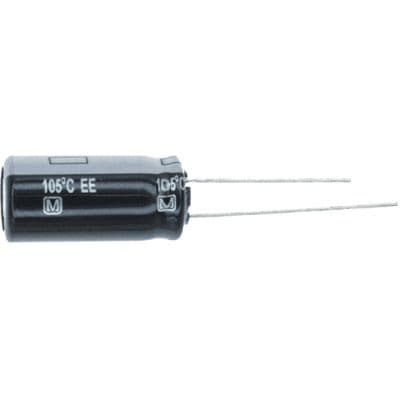

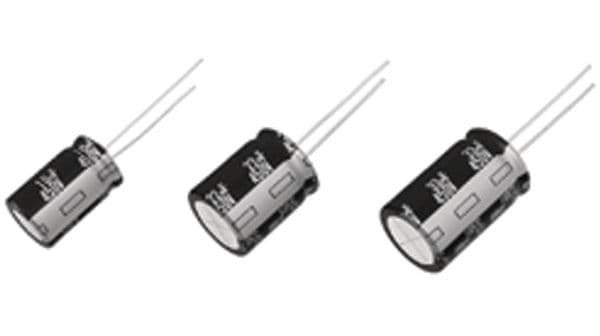

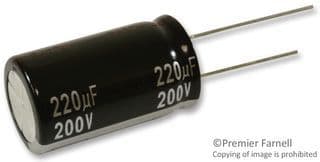

Product Images
