22µF radial aluminum electrolytic capacitor with a 250V DC voltage rating and 20% tolerance. Features a 785mA ripple current, 340µA leakage current, and a dissipation factor of 0.15%. Operates within a temperature range of -25°C to 105°C with an 8000-hour life expectancy. Through-hole mounting with a 5mm lead pitch and 0.6mm lead diameter.
PackageRadial
Voltage250V
Capacitance22uF
Voltage Rating250V
Quick Jump:
Technical Specifications
Panasonic EEU-EE2E220 technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.15% |
| Height | 20mm |
| Height - Seated (Max) | 0.787inch |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 340uA |
| Length | 20mm |
| Life (Hours) | 8000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 785mA |
| RoHS Compliant | Yes |
| Series | EE |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 250V |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-EE2E220 Datasheet
Download the complete datasheet for Panasonic EEU-EE2E220 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

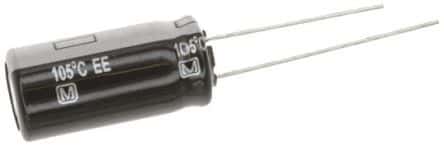

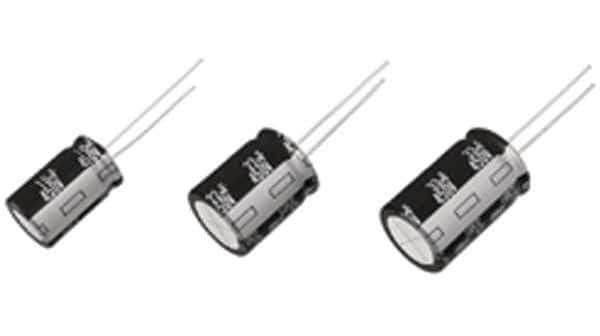

Product Images
