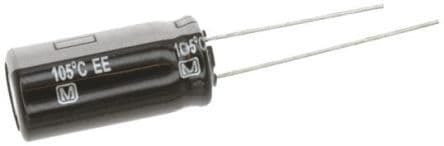

Radial aluminum electrolytic capacitor with 15µF capacitance and 400V DC rated voltage. Features a 20% tolerance, 590mA ripple current, and 10000-hour life at 105°C. Dimensions are 12.5mm diameter and 20mm height, with a 5mm lead pitch and 0.6mm lead diameter. This through-hole component offers low leakage current of 370µA and is RoHS compliant.
PackageRadial
Voltage400V
Capacitance15uF
Voltage Rating400V
Quick Jump:
Technical Specifications
Panasonic EEU-EE2G150 technical specifications.
General
| Capacitance | 15uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 12.5mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.24% |
| Height | 20mm |
| Height - Seated (Max) | 0.866inch |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 370uA |
| Length | 20mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 590mA |
| Ripple Current (AC) | 590mA |
| RoHS Compliant | Yes |
| Series | EE |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 400V |
| Voltage Rating | 400V |
| DC Rated Voltage | 400V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-EE2G150 Datasheet
Download the complete datasheet for Panasonic EEU-EE2G150 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
