Aluminum electrolytic capacitor with 22µF capacitance and 350V DC rated voltage. Features a 20% tolerance, 660mA ripple current, and a 10,000-hour life at 105°C. Radial package with 5mm lead pitch, 0.6mm lead diameter, and dimensions of 12.5mm diameter by 20mm height. Through-hole mounting, RoHS compliant, and lead-free.
PackageRadial
Voltage350V
Capacitance22uF
Voltage Rating350V
Quick Jump:
Technical Specifications
Panasonic EEU-EE2V220 technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 12.5mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.2% |
| Height | 20mm |
| Height - Seated (Max) | 0.787inch |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 472uA |
| Length | 20mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 660mA |
| RoHS Compliant | Yes |
| Series | EE |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 350V |
| Voltage Rating | 350V |
| DC Rated Voltage | 350V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-EE2V220 Datasheet
Download the complete datasheet for Panasonic EEU-EE2V220 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

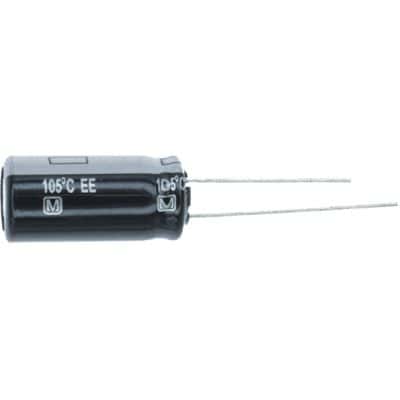

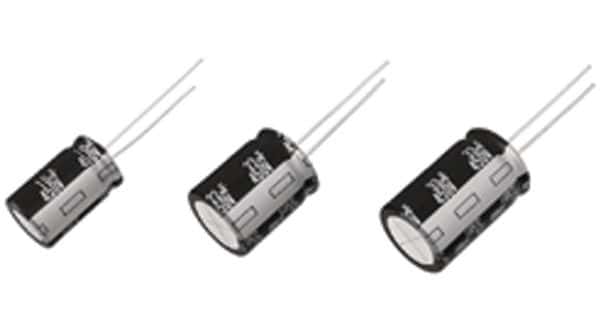

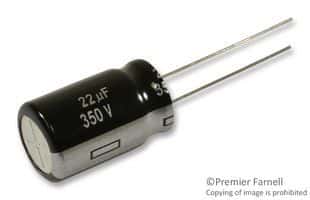

Product Images
