Radial aluminum electrolytic capacitor with 47µF capacitance and 450V voltage rating. Features a high ripple current capability of 1.2A and a dissipation factor of 0.24%. Designed for through-hole PCB mounting with a 7.5mm lead pitch and 0.8mm lead diameter. Operates within a temperature range of -25°C to 105°C, offering 10,000 hours of life. RoHS compliant and lead-free.
PackageRadial
Voltage450V
Capacitance47uF
Voltage Rating450V
Quick Jump:
Technical Specifications
Panasonic EEU-EE2W470S technical specifications.
General
| Capacitance | 47uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 18mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.24% |
| Height | 25mm |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Leakage Current | 1.279mA |
| Length | 25mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.2A |
| RoHS Compliant | Yes |
| Series | EE |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 450V |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-EE2W470S Datasheet
Download the complete datasheet for Panasonic EEU-EE2W470S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

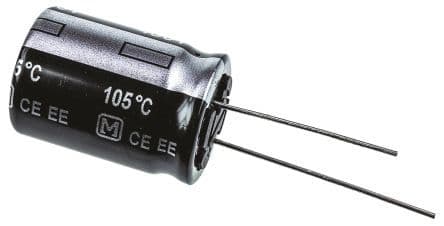

Product Images
