Radial aluminum electrolytic capacitor with 1500µF capacitance and 10V DC rated voltage. Features 45mΩ ESR, 1.44A ripple current, and 3000-hour life at 105°C. Dimensions are 10mm diameter and 25mm height with a 5mm lead pitch. Suitable for through-hole PCB mounting, this bulk-packaged component is RoHS compliant.
PackageRadial
Voltage10V
Capacitance1.5mF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic EEU-FC1A152 technical specifications.
General
| Capacitance | 1.5mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 19% |
| ESR (Equivalent Series Resistance) | 45mR |
| Height | 25mm |
| Height - Seated (Max) | 0.984inch |
| Impedance | 45mR |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 3A |
| Length | 25mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.44A |
| Ripple Current (AC) | 1.44A |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FC1A152 Datasheet
Download the complete datasheet for Panasonic EEU-FC1A152 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

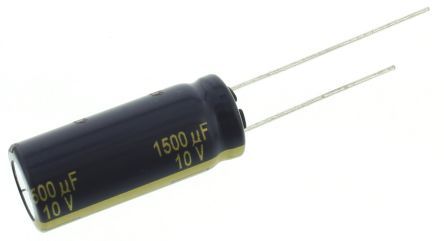

Product Images
