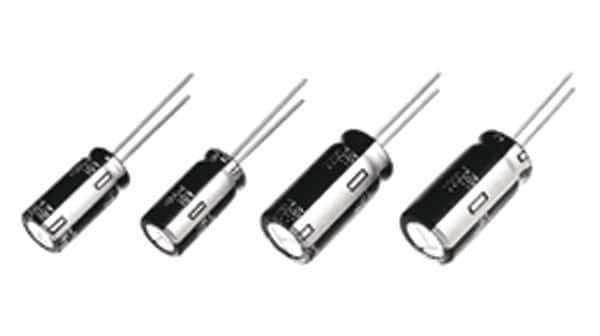

Aluminum electrolytic capacitor with 2200µF capacitance and 10V DC rated voltage. Features 20% tolerance, 38mΩ ESR, and 1.655A ripple current capability. Radial package with 5mm lead pitch, 12.5mm diameter, and 20mm height. Rated for 5000 hours at 105°C, with a minimum operating temperature of -55°C. Through-hole mounting for PCB applications.
PackageRadial
Voltage10V
Capacitance2.2mF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic EEU-FC1A222 technical specifications.
General
| Capacitance | 2.2mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 12.5mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 38mR |
| Height | 20mm |
| Impedance | 38mR |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 3uA |
| Length | 20mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 1.655A |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FC1A222 Datasheet
Download the complete datasheet for Panasonic EEU-FC1A222 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
