Radial aluminum electrolytic capacitor with 2.7mF capacitance and 10V DC rated voltage. Features 20% tolerance, 30mR ESR, and 1.945A ripple current. Designed for through-hole PCB mounting with a 5mm lead pitch and 12.5mm diameter. Operates from -55°C to 105°C with a 5000-hour life rating and AEC-Q200 compliance.
PackageRadial
Voltage10V
Capacitance2.7mF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic EEU-FC1A272 technical specifications.
General
Capacitance
2.7mF
Package/Case
Radial
Construction
RADIAL
Diameter
12.5mm
Dielectric Material
Aluminium
Dissipation Factor
0.19%
ESR (Equivalent Series Resistance)
30mR
Height
25mm
Impedance
30mR
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
5mm
Leakage Current
3uA
Length
25mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
1.945A
RoHS Compliant
Yes
Series
FC
Termination
Radial
Tolerance
20%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-FC1A272 Datasheet
Download the complete datasheet for Panasonic EEU-FC1A272 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

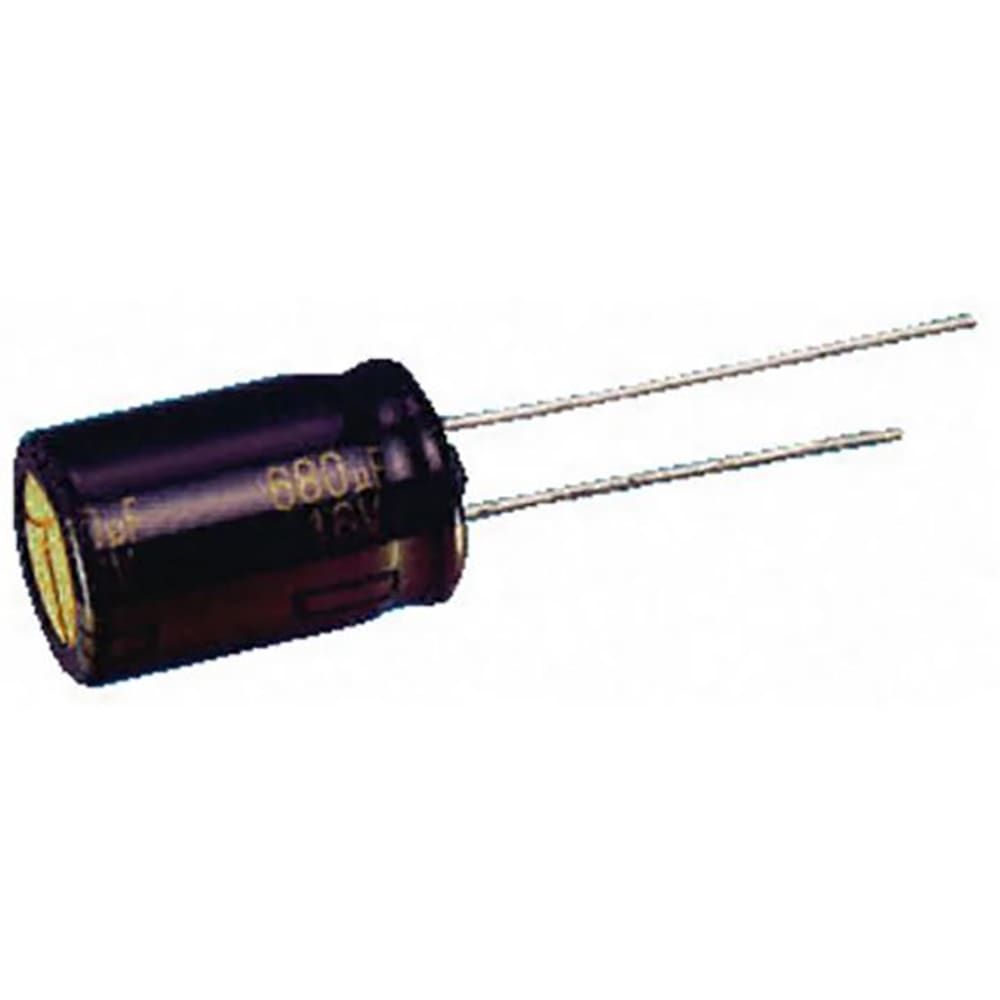

Product Images
