Aluminum electrolytic capacitor with 5.6mF capacitance and 10V DC rating. Features 20% tolerance, 22mR ESR, and 2.555A ripple current. Radial package with 7.5mm lead pitch, 16mm diameter, and 25mm height. Operates from -55°C to 105°C with a 5000-hour lifespan. RoHS compliant and lead-free.
PackageRadial
Voltage10V
Capacitance5.6mF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic EEU-FC1A562 technical specifications.
General
Capacitance
5.6mF
Package/Case
Radial
Construction
RADIAL
Diameter
16mm
Dielectric Material
Aluminium
Dissipation Factor
0.19%
ESR (Equivalent Series Resistance)
22mR
Height
25mm
Height - Seated (Max)
0.984inch
Impedance
22mR
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Pitch
7.5mm
Leakage Current
3uA
Length
25mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
2.555A
Ripple Current (AC)
2.555A
RoHS Compliant
Yes
Series
FC
Termination
Radial
Tolerance
20%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-FC1A562 Datasheet
Download the complete datasheet for Panasonic EEU-FC1A562 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

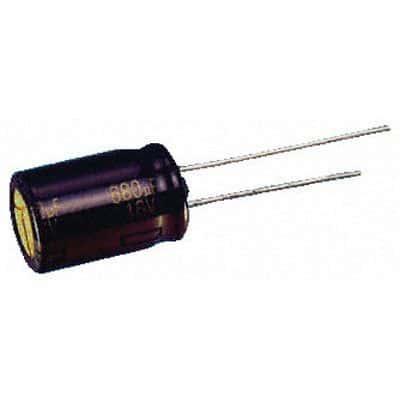

Product Images
