Radial aluminum electrolytic capacitor, 2200µF capacitance, 16V DC rated voltage, and 20% tolerance. Features 29mΩ ESR, 2.205A ripple current, and a maximum operating temperature of 105°C. Designed for through-hole mounting with a 7.5mm lead pitch, measuring 16mm in diameter and 20mm in height. Offers 5000 hours of life at rated conditions and is RoHS compliant.
PackageRadial
Capacitance2.2mF
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic EEU-FC1C222SB technical specifications.
General
| Capacitance | 2.2mF |
| Package/Case | Radial |
| Diameter | 16mm |
| Dissipation Factor | 0.16% |
| ESR (Equivalent Series Resistance) | 29mR |
| Height | 20mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Leakage Current | 3uA |
| Length | 20mm |
| Life (Hours) | 5000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 250 |
| Packaging | Ammo Pack |
| Radiation Hardening | No |
| Ripple Current | 2.205A |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | Radial |
| Tolerance | 20% |
| DC Rated Voltage | 16V |
| Width | 16mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FC1C222SB Datasheet
Download the complete datasheet for Panasonic EEU-FC1C222SB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

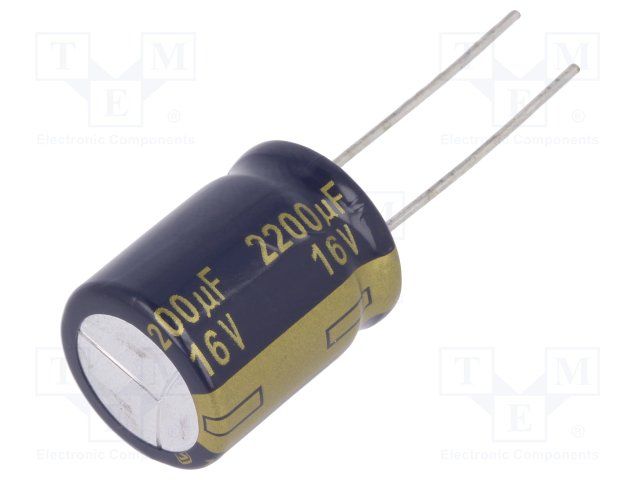

Product Images
