General purpose aluminum electrolytic capacitor with 6.8mF capacitance and 16V DC rated voltage. Features 15mR ESR, 3.36A ripple current, and a 5000-hour life at 105°C. Radial package measures 16mm diameter by 40mm height with 7.5mm lead pitch. Through-hole mounting, RoHS compliant, and supplied in bulk packaging.
PackageRadial
Voltage16V
Capacitance6.8mF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEU-FC1C682 technical specifications.
General
| Capacitance | 6.8mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 16mm |
| Dissipation Factor | 0.16% |
| ESR (Equivalent Series Resistance) | 15mR |
| Features | General Purpose |
| Height | 40mm |
| Height - Seated (Max) | 1.575inch |
| Impedance | 15mR |
| Lead Diameter | 0.8mm |
| Lead Pitch | 7.5mm |
| Leakage Current | 3uA |
| Length | 40mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 3.36A |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FC1C682 Datasheet
Download the complete datasheet for Panasonic EEU-FC1C682 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

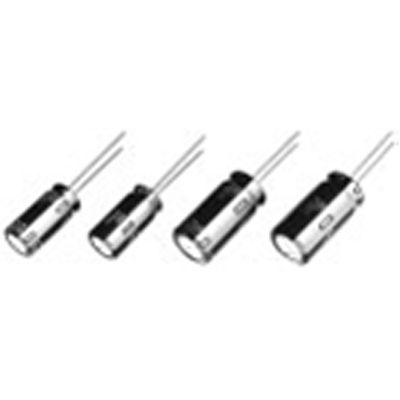

Product Images
