Aluminum electrolytic capacitor, 1000µF capacitance, 25V DC rated voltage, 20% tolerance. Features 35mΩ ESR, 1.815A ripple current, and 3µA leakage current. Operates from -55°C to 105°C with a 3000-hour life rating. Radial package, 10mm diameter, 30mm height, 5mm lead pitch, 0.6mm lead diameter. Through-hole mounting, RoHS compliant, AEC-Q200 rated.
PackageRadial
Voltage25V
Capacitance1mF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEU-FC1E102L technical specifications.
General
Capacitance
1mF
Package/Case
Radial
Construction
RADIAL
Diameter
10mm
Dissipation Factor
14%
ESR (Equivalent Series Resistance)
35mR
Height
30mm
Impedance
35mR
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
5mm
Leakage Current
3uA
Length
30mm
Life (Hours)
3000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
1.815A
Ripple Current (AC)
1.815A
RoHS Compliant
Yes
Series
FC
Termination
Radial
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-FC1E102L Datasheet
Download the complete datasheet for Panasonic EEU-FC1E102L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

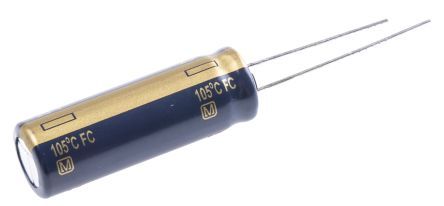

Product Images
