Aluminum electrolytic capacitor with 1.2mF capacitance and 25V DC rating. Features 20% tolerance, 38mΩ ESR, and 2A ripple current capability. Designed for general-purpose applications with a 5000-hour life at 105°C. Radial package with 7.5mm lead pitch, 18mm diameter, and 15mm height for through-hole PCB mounting.
PackageRadial
Voltage25V
Capacitance1.2mF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEU-FC1E122S technical specifications.
General
| Capacitance | 1.2mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 18mm |
| ESR (Equivalent Series Resistance) | 38mR |
| Features | General Purpose |
| Height | 15mm |
| Height - Seated (Max) | 0.591inch |
| Impedance | 38mR |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Leakage Current | 3uA |
| Length | 15mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 2A |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FC1E122S Datasheet
Download the complete datasheet for Panasonic EEU-FC1E122S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

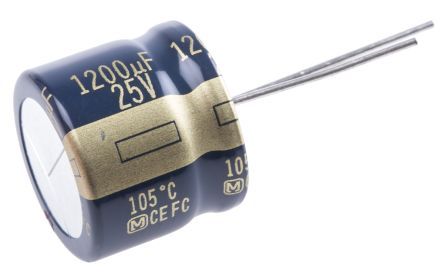

Product Images
