Aluminum electrolytic capacitor with 4700µF capacitance and 25V DC rating. Features 20% tolerance, 15mΩ ESR, and 3.68A ripple current. Designed for general purpose applications with a radial package, 7.5mm lead pitch, and 18mm diameter. Operates from -55°C to 105°C with a 5000-hour lifespan.
PackageRadial
Voltage25V
Capacitance4.7mF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEU-FC1E472 technical specifications.
General
| Capacitance | 4.7mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 18mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 15mR |
| Features | General Purpose |
| Height | 35.5mm |
| Height - Seated (Max) | 1.398inch |
| Impedance | 15mR |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Leakage Current | 3uA |
| Length | 35mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 50 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 3.68A |
| Ripple Current (AC) | 3.68A |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FC1E472 Datasheet
Download the complete datasheet for Panasonic EEU-FC1E472 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

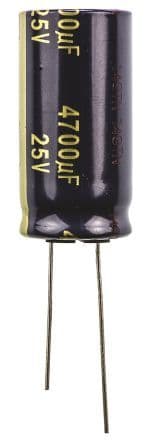

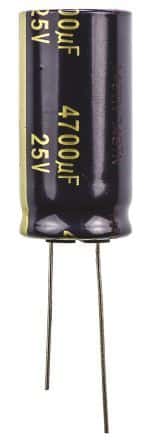

Product Images
