Radial aluminum electrolytic capacitor with 10µF capacitance and 20% tolerance. Features a 50V DC voltage rating, 105°C maximum operating temperature, and 1000-hour life expectancy. This through-hole component has a 1.5mm lead pitch, 4mm diameter, and 11mm height, with an ESR of 2.5Ω.
PackageRadial
Voltage50V
Storage11mm
Capacitance10uF
Quick Jump:
Technical Specifications
Panasonic EEU-FC1H100 technical specifications.
General
| Capacitance | 10uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 4mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 2.5R |
| Height | 11mm |
| Height - Seated (Max) | 0.433inch |
| Impedance | 2.5R |
| Lead Diameter | 0.45mm |
| Lead Free | Lead Free |
| Lead Pitch | 1.5mm |
| Leakage Current | 3uA |
| Length | 11mm |
| Life (Hours) | 1000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 90mA |
| Ripple Current (AC) | 90mA |
| RoHS Compliant | Yes |
| Series | FC |
| Size | 11mm |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FC1H100 Datasheet
Download the complete datasheet for Panasonic EEU-FC1H100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

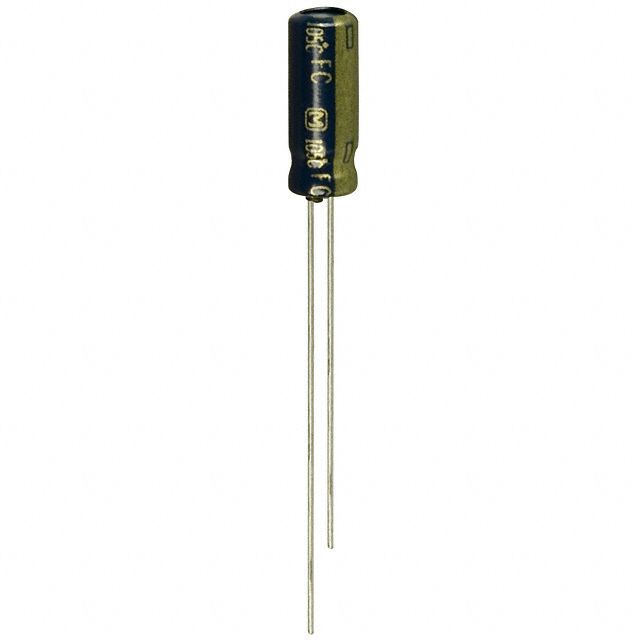

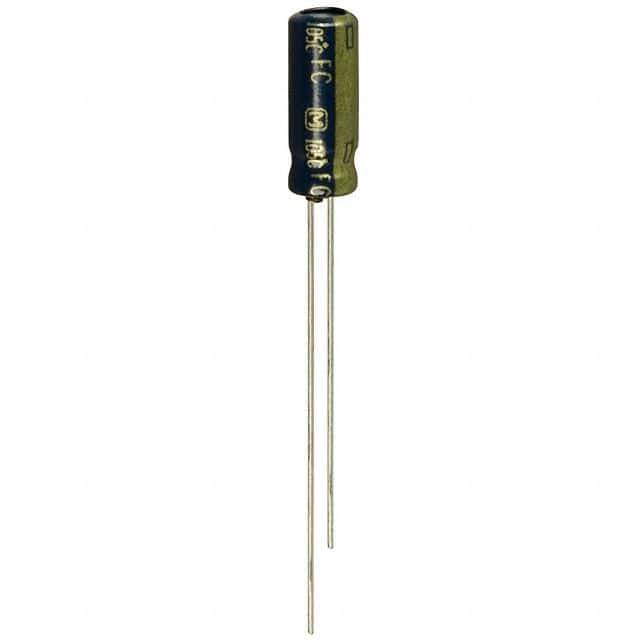

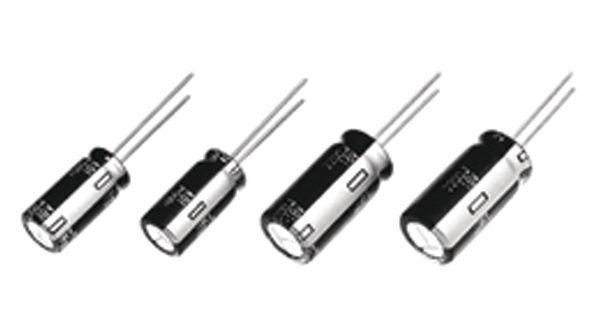

Product Images
