100µF, 50V radial aluminum electrolytic capacitor with 20% tolerance. Features 162mΩ ESR, 615mA ripple current, and 3000-hour life at 105°C. Designed for through-hole PCB mounting, this RoHS compliant component operates from -55°C to 105°C.
PackageRadial
Voltage50V
Capacitance100uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic EEU-FC1H101 technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 10% |
| ESR (Equivalent Series Resistance) | 162mR |
| Height | 12.5mm |
| Impedance | 162mR |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 3A |
| Length | 12.5mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 615mA |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FC1H101 Datasheet
Download the complete datasheet for Panasonic EEU-FC1H101 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

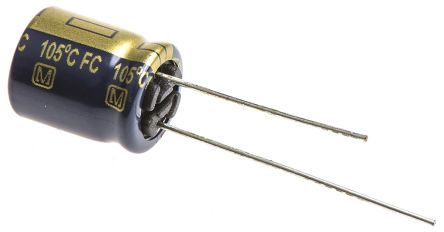

Product Images
