Aluminum electrolytic capacitor, 1000µF capacitance, 50V DC rated voltage, 20% tolerance. Features 34mΩ ESR and 2.235A ripple current capability. Operates from -55°C to 105°C with a 5000-hour life rating. Radial package with 7.5mm lead pitch, 16mm diameter, and 25mm height. Through-hole mounting, AEC-Q200 qualified, and RoHS compliant.
PackageRadial
Capacitance1mF
Voltage Rating50V
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic EEU-FC1H102B technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Diameter | 16mm |
| ESR (Equivalent Series Resistance) | 34mR |
| Height | 25mm |
| Height - Seated (Max) | 0.984inch |
| Impedance | 34mR |
| Lead Diameter | 0.8mm |
| Lead Pitch | 7.5mm |
| Length | 25mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Ripple Current | 2.235A |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FC1H102B Datasheet
Download the complete datasheet for Panasonic EEU-FC1H102B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

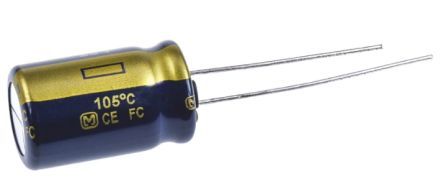

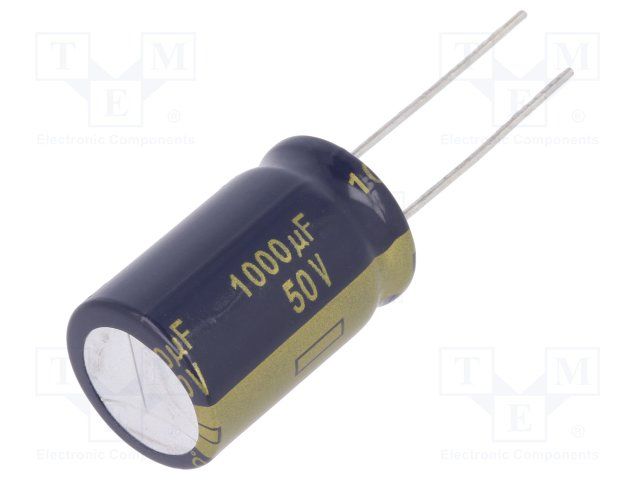

Product Images
