Aluminum electrolytic capacitor with 15µF capacitance and 50V DC rated voltage. Features a 20% tolerance, 1.3Ω ESR, and 145mA ripple current. Radial package measures 5mm diameter by 11mm height with a 2mm lead pitch. Rated for 1000 hours at 105°C, operating from -55°C to 105°C. Through-hole mounting, RoHS compliant, and AEC-Q200 qualified.
PackageRadial
Voltage50V
Capacitance15uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic EEU-FC1H150 technical specifications.
General
| Capacitance | 15uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 5mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 1.3R |
| Height | 11mm |
| Impedance | 1.3R |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 2mm |
| Leakage Current | 3uA |
| Length | 11mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 145mA |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FC1H150 Datasheet
Download the complete datasheet for Panasonic EEU-FC1H150 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

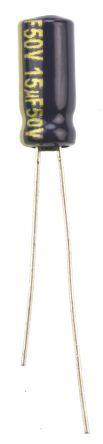

Product Images
