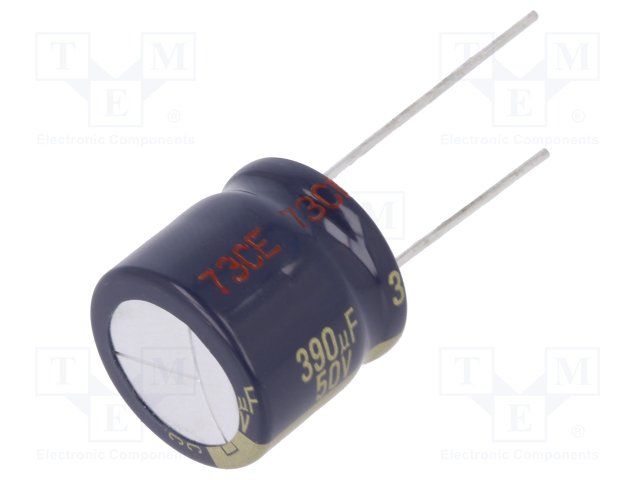

This Panasonic EEU-FC1H391SB capacitor has a capacitance of 390uF and a DC rated voltage of 50V. It operates within a temperature range of -55°C to 105°C and is designed for through hole mounting. The capacitor has a tolerance of 20% and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic EEU-FC1H391SB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EEU-FC1H391SB technical specifications.
| Capacitance | 390uF |
| Diameter | 16mm |
| ESR (Equivalent Series Resistance) | 80mR |
| Height | 15mm |
| Lead Pitch | 7.5mm |
| Length | 15mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 1.61A |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | Radial |
| Tolerance | 20% |
| DC Rated Voltage | 50V |
| RoHS | Compliant |
