220µF, 63V radial aluminum electrolytic capacitor for through-hole PCB mounting. Features 85mΩ ESR, 1.285A ripple current, and a 5000-hour life at 105°C. This RoHS compliant component has a 20% tolerance and a leakage current of 3µA. Dimensions include a 12.5mm diameter and 20mm height with a 5mm lead pitch.
PackageRadial
Voltage63V
Capacitance220uF
Voltage Rating63V
Quick Jump:
Technical Specifications
Panasonic EEU-FC1J221S technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 12.5mm |
| Dissipation Factor | 0.08% |
| ESR (Equivalent Series Resistance) | 85mR |
| Height | 20mm |
| Impedance | 85mR |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 3uA |
| Length | 20mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 1.285A |
| Ripple Current (AC) | 1.285A |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 63V |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FC1J221S Datasheet
Download the complete datasheet for Panasonic EEU-FC1J221S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

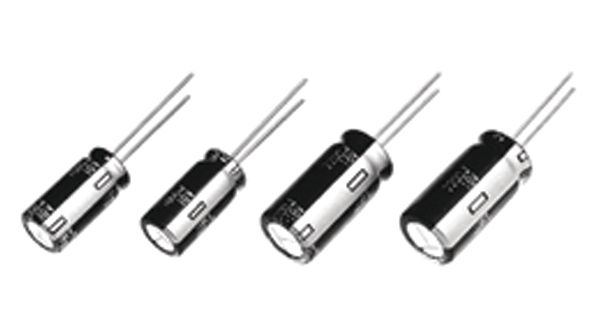

Product Images
