Radial aluminum electrolytic capacitor with 470uF capacitance and 20% tolerance. Features a 63V DC rated voltage, 1.765A ripple current, and 59mR ESR. Designed for through-hole PCB mounting with a 7.5mm lead pitch and 0.8mm lead diameter. Operates across a -55°C to 105°C temperature range with a 5000-hour life rating. RoHS compliant and AEC-Q200 qualified.
PackageRadial
Voltage63V
Capacitance470uF
Voltage Rating63V
Quick Jump:
Technical Specifications
Panasonic EEU-FC1J471 technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 16mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 59mR |
| Height | 20mm |
| Impedance | 59mR |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Leakage Current | 3uA |
| Length | 20mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 1.765A |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 63V |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FC1J471 Datasheet
Download the complete datasheet for Panasonic EEU-FC1J471 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

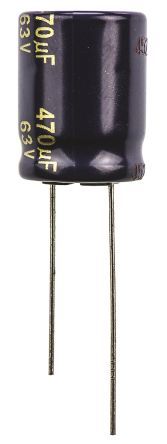

Product Images
