1000µF, 35V radial aluminum electrolytic capacitor with 20% tolerance. Features 29mΩ ESR, 2.205A ripple current, and 3µA leakage current. Operates from -55°C to 105°C with a 5000-hour life rating. Through-hole mounting, 7.5mm lead pitch, 0.8mm lead diameter, 16mm diameter, 20mm height, and 20mm length. RoHS compliant.
PackageRadial
Voltage35V
Capacitance1mF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEU-FC1V102S technical specifications.
General
Capacitance
1mF
Package/Case
Radial
Construction
RADIAL
Diameter
16mm
Dielectric Material
Aluminium
Dissipation Factor
12%
ESR (Equivalent Series Resistance)
29mR
Height
20mm
Impedance
29mR
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Pitch
7.5mm
Leakage Current
3uA
Length
20mm
Life (Hours)
5000Hour
Material
Aluminium
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
2.205A
RoHS Compliant
Yes
Series
FC
Termination
Radial
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Width
16mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-FC1V102S Datasheet
Download the complete datasheet for Panasonic EEU-FC1V102S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

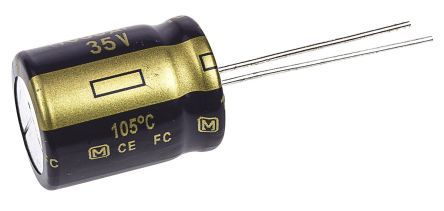

Product Images
