Radial leaded aluminum electrolytic capacitor, FC series, offering 120µF capacitance with a ±10% tolerance. Features a 35V DC rating, 117mΩ ESR, and 555mA ripple current capability. Designed for through-hole PCB mounting with a 3.5mm lead pitch and 8mm diameter. Operates across a -55°C to 105°C temperature range with a rated life of 2000 hours.
PackageRadial
Voltage35V
Capacitance120uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEU-FC1V121 technical specifications.
General
| Capacitance | 120uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 8mm |
| ESR (Equivalent Series Resistance) | 117mR |
| Height | 11.5mm |
| Height - Seated (Max) | 0.453inch |
| Impedance | 117mR |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 3.5mm |
| Leakage Current | 3uA |
| Length | 11.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 555mA |
| Ripple Current (AC) | 555mA |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | Radial |
| Tolerance | 10% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FC1V121 Datasheet
Download the complete datasheet for Panasonic EEU-FC1V121 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

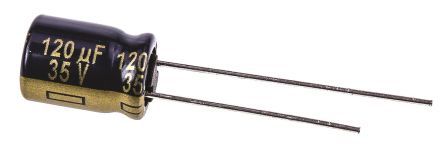

Product Images
