150µF radial aluminum electrolytic capacitor with 35V DC rating and 20% tolerance. Features 117mΩ ESR, 555mA ripple current, and 3µA leakage current. Operates from -55°C to 105°C with a 2000-hour life rating. Through-hole mounting, 8mm diameter, 11.5mm height, 3.5mm lead pitch, and 0.6mm lead diameter. RoHS compliant and AEC-Q200 qualified.
PackageRadial
Voltage35V
Storage11.5mm
Capacitance150uF
Quick Jump:
Technical Specifications
Panasonic EEU-FC1V151 technical specifications.
General
| Capacitance | 150uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 12% |
| ESR (Equivalent Series Resistance) | 117mR |
| Height | 11.5mm |
| Impedance | 117mR |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 3.5mm |
| Leakage Current | 3uA |
| Length | 11mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 555mA |
| RoHS Compliant | Yes |
| Series | FC |
| Size | 11.5mm |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| Voltage Rating (AC) | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FC1V151 Datasheet
Download the complete datasheet for Panasonic EEU-FC1V151 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

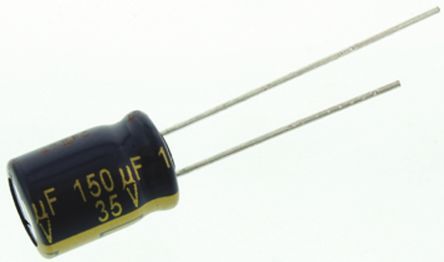

Product Images
