Aluminum electrolytic capacitor with 22µF capacitance and 35V voltage rating. Features a radial package, 2mm lead pitch, and 5mm diameter with 11mm height. Offers 175mA ripple current, 800mΩ ESR, and 3µA leakage current. Operates from -55°C to 105°C, with a 1000-hour life rating at 105°C. Through-hole mounting, lead-free, RoHS compliant, and AEC-Q200 rated.
PackageRadial
Voltage35V
Capacitance22uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEU-FC1V220 technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 5mm |
| ESR (Equivalent Series Resistance) | 800mR |
| Height | 11mm |
| Impedance | 800mR |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 2mm |
| Leakage Current | 3uA |
| Length | 11mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 175mA |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FC1V220 Datasheet
Download the complete datasheet for Panasonic EEU-FC1V220 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

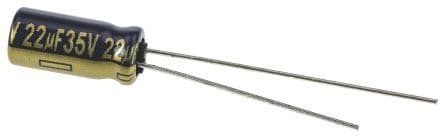

Product Images
