220µF radial aluminum electrolytic capacitor with 35V DC rated voltage and 20% tolerance. Features 85mΩ ESR and 85mΩ impedance, 730mA ripple current, and a leakage current of 3µA. Operates from -55°C to 105°C with a 2000-hour life rating. Through-hole mounting for PCB applications, RoHS compliant, and AEC-Q200 qualified.
PackageRadial
Voltage35V
Capacitance220uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEU-FC1V221L technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 8mm |
| ESR (Equivalent Series Resistance) | 85mR |
| Height | 15mm |
| Impedance | 85mR |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 3.5mm |
| Leakage Current | 3uA |
| Length | 15mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 730mA |
| Ripple Current (AC) | 730mA |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FC1V221L Datasheet
Download the complete datasheet for Panasonic EEU-FC1V221L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

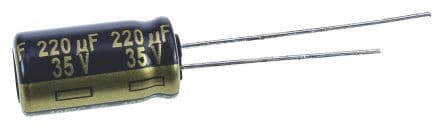

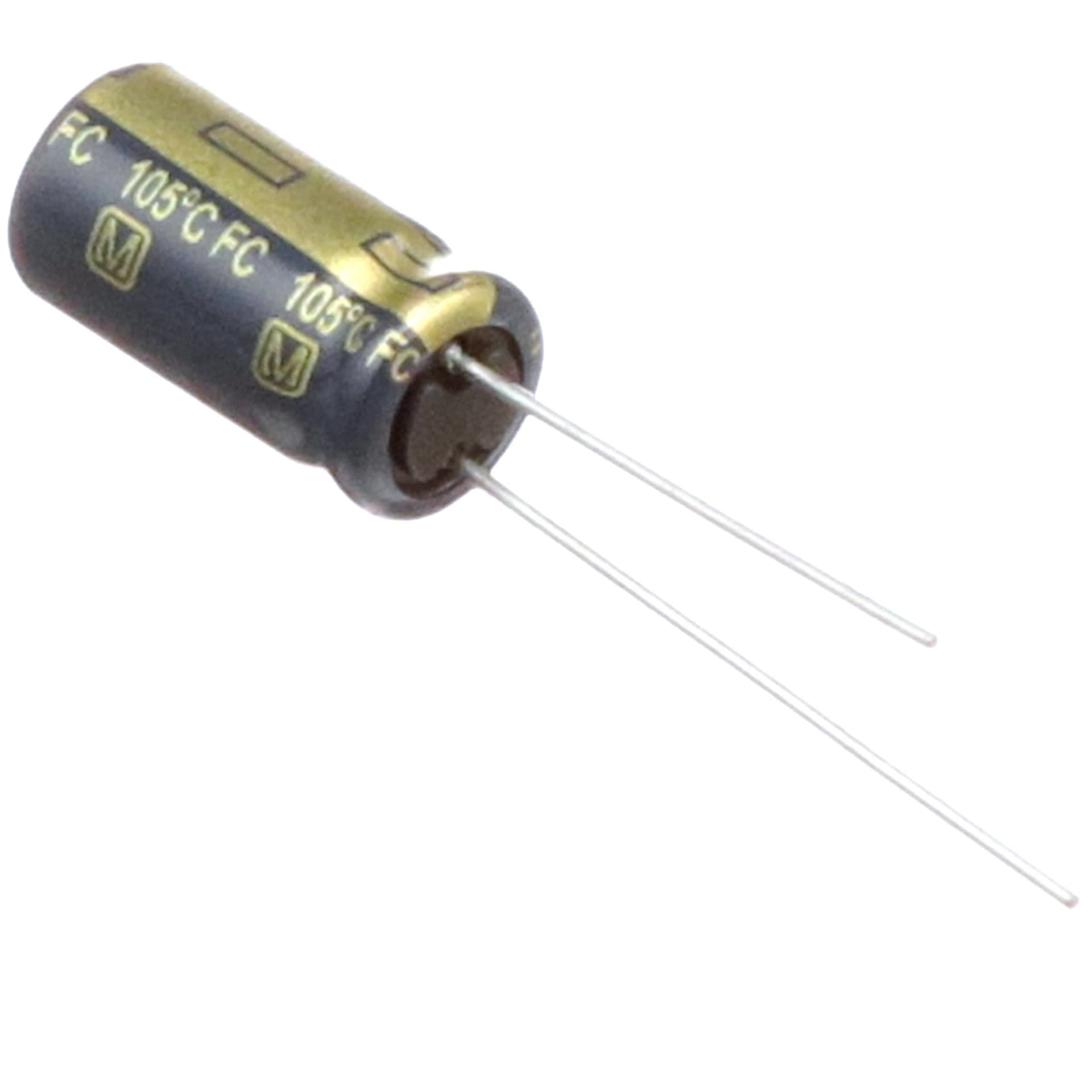

Product Images
