Radial aluminum electrolytic capacitor with 2200µF capacitance and 35V DC voltage rating. Features 20% tolerance, 20mΩ ESR, and 2.74A ripple current. Operates from -55°C to 105°C with a 5000-hour life rating. Through-hole mounting with a 7.5mm lead pitch and 0.8mm lead diameter. RoHS compliant and AEC-Q200 qualified.
PackageRadial
Voltage35V
Storage25mm
Capacitance2.2mF
Quick Jump:
Technical Specifications
Panasonic EEU-FC1V222S technical specifications.
General
Capacitance
2.2mF
Package/Case
Radial
Construction
RADIAL
Diameter
18mm
Dissipation Factor
14%
ESR (Equivalent Series Resistance)
20mR
Height
25mm
Impedance
20mR
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Pitch
7.5mm
Leakage Current
3uA
Length
25mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
2.74A
RoHS Compliant
Yes
Series
FC
Size
25mm
Termination
Radial
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-FC1V222S Datasheet
Download the complete datasheet for Panasonic EEU-FC1V222S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

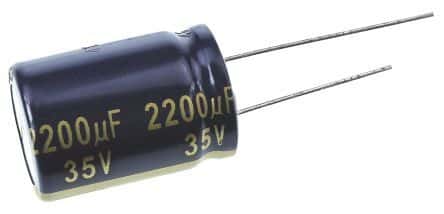

Product Images
