Panasonic
EEU-FC1V271B
Cap Aluminum 270uF 35V 20% (10 X 16mm) Radial 5mm 1050mA 3000 hr 105C Ammo Pack
Capacitance270uF
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic EEU-FC1V271B technical specifications.
General
Capacitance
270uF
Diameter
10mm
ESR (Equivalent Series Resistance)
68mR
Height
16mm
Lead Pitch
5mm
Length
16mm
Life (Hours)
3000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
500
Packaging
Ammo Pack
Radiation Hardening
No
Ripple Current
1.05A
RoHS Compliant
Yes
Series
FC
Termination
Radial
Tolerance
20%
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-FC1V271B Datasheet
Download the complete datasheet for Panasonic EEU-FC1V271B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

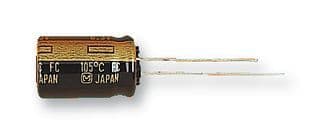

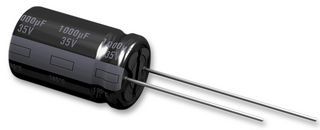

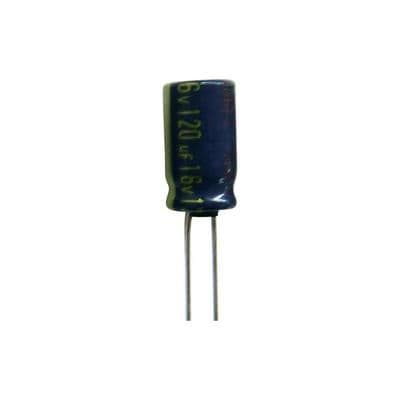

Product Images
